Small footprint optical turnstile SU5000

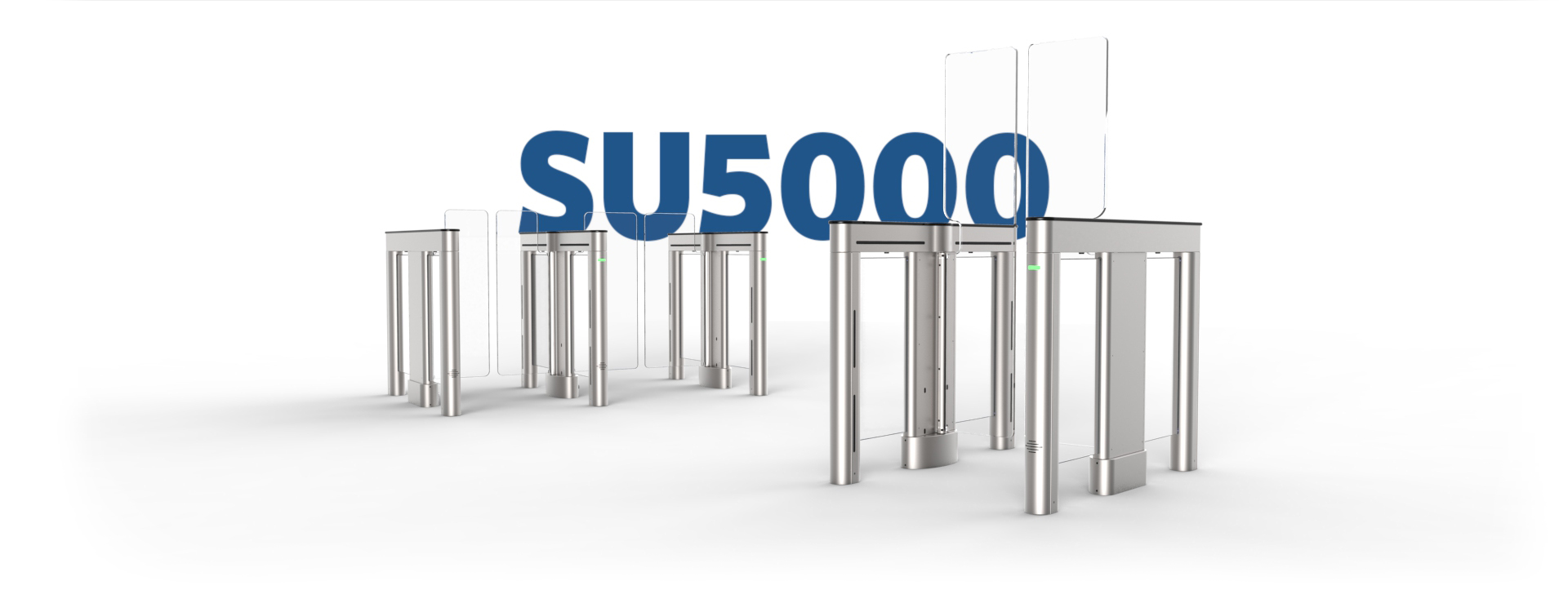

SU5000 Swinging Barrier Optical Turnstile

Beneath an elegant exterior design lies a true powerhouse of technology. The SU5000 with bi-directional motorized swinging barriers is the culmination of Alvarado’s many years of optical turnstile design and manufacturing experience.


Secured entry control applications

Main lobby access   |   Employee entrances   |   Elevator bank access   |   Visitor management

Secured entry control for corporate buildings

Corporate Security


Secured entry control for industrial facilities

Industrial Facilities


Secured entry control for government buildings

Government Security


Secured entry control for higher education

Higher Education


Secured entry control for health and fitness clubs

Health and Fitness



Design without compromise

Elegant Design

The SU5000 is simply a beautiful product. Its rounded lines, contoured edges and liberal use of crystal clear materials create a very upscale look suitable for any premium lobby.  With the industry’s slimmest cabinet design, the SU5000 slim size and very compact footprint saves floor space and allows use of optical turnstiles in areas where space is a premium.

Key Features:

  • Three-panel height options
  • Slimmest available cabinet width
  • Standard and handicapped width lanes have same cabinet dimensions
  • Shared center cabinets to create multiple lane configurations
  • Highly intuitive LED illuminated user graphics embedded in turnstile lid
  • Crystal clear swinging and fixed side panels
  • Cabinet finish and lid color options to blend with any environment
  • Optional panel etching and/or panel illumination

Added Benefits:

  • Modern design blends with any lobby
  • Slim cabinets allows optical turnstile use in compact spaces
  • Transparent panels look great and increase visibility
  • Cabinet and lid options to blend with any environment
  • Visual graphics provide guidance to users
  • Etching and illumination options provide unique branding opportunities

icon_VR_arrow

Intelligent, reliable and secure operation

Superior Technology

The SU5000 swinging barrier optical turnstile provides bi-directional access control in conjunction with a facility access control system. To enter, users present a valid credential which opens the turnstile’s motorized barriers away from the user, allowing a single passage in the requested direction. If an unauthorized user attempts to tailgate on a valid entry, or attempts to enter without authorization, the integrated sensors recognize the illegal passage attempt and sound an alarm. The SU5000 has a number of operational modes and features that provide a superb combination of security, safety and high user throughput.

The SU5000 is an IP enabled device. Core turnstile settings are adjusted in the field using an included web application. Using a PC, tablet or smartphone, configurable features – such as audio sounds, motor settings, detection settings, tailgate settings and alarm timer settings – are set and changed over a TCP/IP network. For installations where turnstiles are not networked, configuration changes are easily made by plugging directly into the turnstile’s configuration port.

Key Features:

  • Card in/card out; card in/free exit; either or both directions closed for use
  • Superior unauthorized passage and unauthorized presence detection
  • Motorized panels open quickly and smoothly away from the user
  • Download configuration changes and custom audio sounds over a TCP/IP network
  • Brushless closed loop DC drive system
  • Software adjustable panel holding force and operating speed
  • Multiple operation modes
  • Designed for continued use and maintenance free performance

Added Benefits:

  • Very intuitive for users and attendants
  • Increases security ensuring only valid users gain access
  • Integrates easily with access control systems
  • Supports very rapid throughput
  • Stacks access credentials and processes access control system signals instantly
  • Quick and precise panel movement and alignment – no need for adjustments
  • Easy to install – provides years of trouble free operation

Simplified integration

Access Control and Visitor Management

Integrating the SU5000 optical turnstile into your facility is quick and easy. The SU5000 integrates with virtually any access control or visitor management system and accommodates a wide array of credential readers. Dedicated inputs for fire or life safety systems are provided and outputs are available to turn on cameras, lock interior doors and provide remote notification of alarm events. The result is a barrier optical turnstile that not only looks amazing but provides superior access control and visitor management at facilities worldwide.

Lane Monitoring and Control

Alvarado’s GateKeeper Monitoring and Control software allows operational management of SU5000 optical turnstiles over a TCP/IP network. Among its many features, GateKeeper allows authorized personnel using a laptop, PC, tablet or similar device to change lane configurations and provide override activations or operating mode changes for special circumstances such as visitors and deliveries. Passage directions can also be changed (and individual turnstiles opened or closed) automatically at pre-defined times to increase passage flow or heighten security during busy or slow periods.

Key Features:

  • Simplified integration to access control and visitor management systems
  • Flexible credential reader attachment options allows use of existing readers familiar to users
  • Dedicated input for fire/life safety systems
  • Multiple inputs to allow access control systems to implement operating mode changes
  • Multiple outputs available for integration with 3rd party systems and other devices
  • TCP/IP enabled for remote communication and control of turnstiles over an Ethernet network
  • Multiple operational modes including controlled passage, free passage and visitor

Safety features you shouldn’t be without

Built-in Safety

The embedded intelligence and advanced hardware of the SU5000 provides highly evolved safety features. The strategically placed safety sensors are constantly monitored to instantaneously stop the moving panels if a person or object is detected. In the highly unlikely event of contact with a moving panel, our intelligent closed loop motor drive system detects the impact and immediately stops the moving panel. The drive system offers variable panel holding force to balance security with local life safety regulations. When the optical turnstile receives a fire/life safety input, the barriers open in the exit direction and remain open until reset. In the event of power loss, the barrier panels can be moved freely with very minimal force.

Key Features:

  • Strategically placed safety sensors prevent panel impact with persons or objects
  • Intelligent drive system and pinpoint control of moving panels
  • Free egress in emergencies or loss of power
  • Software adjustable panel holding force

Certifications

The SU5000 optical turnstile is one of the few products on the market that is independently tested by a Nationally Recognized Testing Laboratory (NRTL). The SU5000 is ETL Listed, conforming to both UL and CSA standards. It is also CE marked.


logo_ETL

logo_CE

logo_LAtesting

Product downloads


Visit our Resources page for drawings, manuals and application photos.


Additional information

The SU5000 has over a dozen available options, including:

  • Alternate lid colors and materials
  • Powder coated or plated cabinets
  • Custom etching on panels
  • Static or dynamic side panel illumination
  • Multiple barrier heights
  • Integrated barcode reader
  • Universal reader mount for larger readers provides adjustable reader orientation
  • GateKeeper control and monitoring software
  • Floor saver platform

Elevator Destination Dispatch

Alvarado can integrate elevator dispatch displays into the SU5000 lid.

Modular Post and Panel Barriers

Custom infill sections and modular post and railing are available to fill in open areas around installed turnstiles and gates. Learn more about our modular post and panel barriers.
