ARGUS

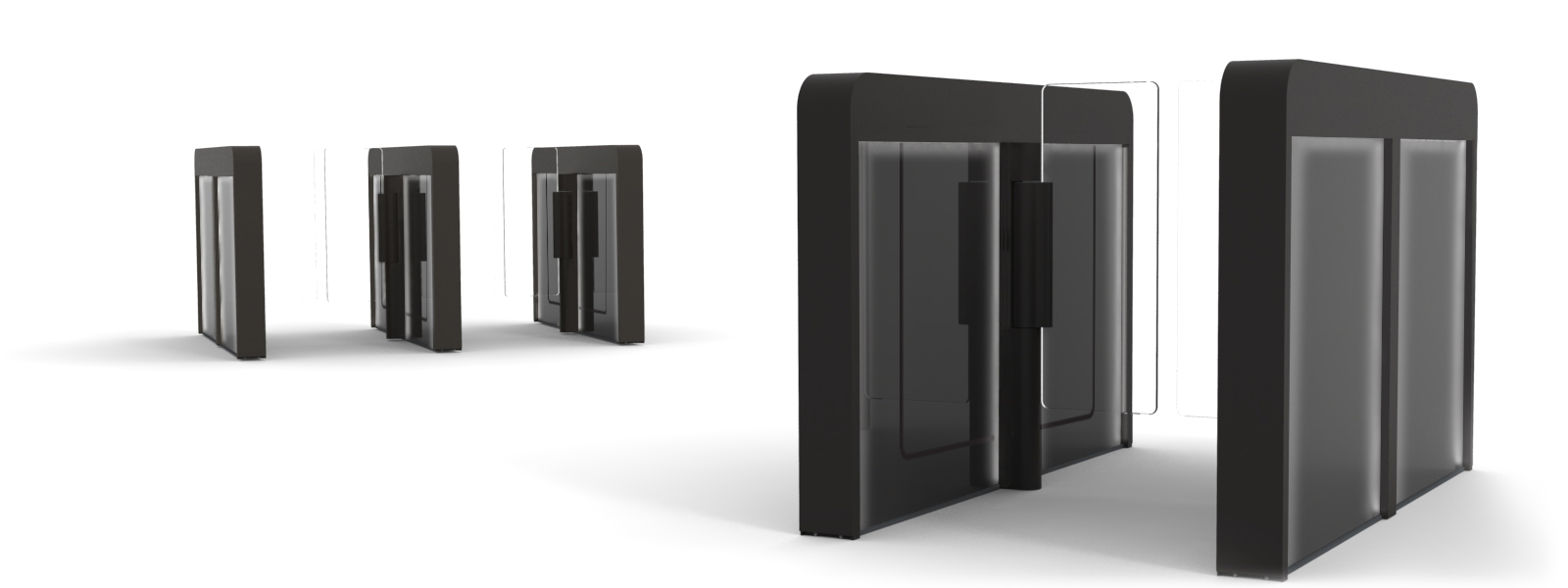

Swinging Glass Barrier Optical Turnstile

With a focus on European design and engineering, the architecturally inspired features and materials of the ARGUS make it a centerpiece for premium lobbies worldwide.

Overview

Design without compromise

Elegant Design

The ARGUS is simply a beautifully designed product. Its straight lines, geometrical corners and moving glass barriers create a modern conversation piece in any premium lobby. The slim form of the ARGUS’s cabinets allows for multiple lanes in minimal space, forming a lasting first impression.

Key Features:

  • Three glass barrier height options, one polycarbonate option
  • Standard and handicapped width lanes have same cabinet dimensions
  • Shared center cabinets to create multiple lane configurations
  • Highly intuitive LED illuminated user lights embedded in cabinet
  • Crystal clear glass swinging barriers
  • Cabinet finish and lid color options to blend with any environment
  • Optional panel etching and/or ambient lighting

Added Benefits:

  • Modern design blends with any lobby
  • Slim cabinets allows optical turnstile use in compact spaces
  • Transparent panels look great and increase visibility
  • Cabinet and lid options to blend with any environment
  • Visual graphics provide guidance to users
  • Optional floor saver platform eliminates the need for anchoring and trenching through floor
icon_VR_arrow

Intelligent, reliable and secure operation

Superior Technology

The ARGUS swinging glass barrier optical turnstile provides bi-directional access control in conjunction with a facility access control system. To enter, users present a valid credential which opens the turnstile’s motorized barriers away from the user, allowing a single passage in the requested direction. If an unauthorized user attempts to tailgate on a valid entry, or attempts to enter without authorization, the integrated sensors recognize the illegal passage attempt and sound an alarm. The ARGUS has a number of operational modes and features that provide a superb combination of security, safety and high user throughput.

Core turnstile settings are adjusted in the field using a Bluetooth connection. Using a PC, tablet or smartphone, configurable features – such as audio sounds, motor settings, detection settings, tailgate settings and alarm timer settings – are changed by connecting directly to the ARGUS.

Key Features:

  • Card in/card out; card in/free exit; either or both directions closed for use
  • Superior unauthorized passage and unauthorized presence detection
  • Motorized panels open quickly and smoothly away from the user
  • Download configuration changes and custom audio sounds over Bluetooth
  • Brushless closed loop DC drive system
  • Software adjustable panel holding force and operating speed
  • Multiple operation modes
  • Designed for continued use and maintenance free performance

Added Benefits:

  • Very intuitive for users and attendants
  • Increases security ensuring only valid users gain access
  • Integrates easily with access control systems
  • Supports very rapid throughput
  • Stacks access credentials and processes access control system signals instantly
  • Quick and precise panel movement and alignment – no need for adjustments
  • Easy to install – provides years of trouble free operation
Applications

Secured entry control applications

Main lobby access   |   Employee entrances   |   Elevator bank access   |   Visitor management

corporate

Corporate Security

industry

Industrial Facilities

government

Government Security

higher education

Higher Education

fitness

Health and Fitness

Integration

Simplified integration

Access Control and Visitor Management

Integrating the ARGUS optical turnstile into your facility is quick and easy. The ARGUS integrates with virtually any access control or visitor management system and accommodates a wide array of credential readers. Dedicated inputs for fire or life safety systems are provided and outputs are available to turn on cameras, lock interior doors and provide remote notification of alarm events. The result is a barrier optical turnstile that not only looks amazing but provides superior access control and visitor management at facilities worldwide.

Key Features:

  • Simplified integration to access control and visitor management systems
  • Flexible credential reader attachment options allows use of existing readers familiar to users
  • Dedicated input for fire/life safety systems
  • Multiple inputs to allow access control systems to implement operating mode changes
  • Multiple outputs available for integration with 3rd party systems and other devices
  • Multiple operational modes including controlled passage, free passage and visitor
Safety

Safety features you shouldn’t be without

Built-in Safety

The embedded intelligence and advanced hardware of the ARGUS provides highly evolved safety features. The strategically placed safety sensors are constantly monitored to instantaneously stop the moving panels if a person or object is detected. In the highly unlikely event of contact with a moving panel, our intelligent closed loop motor drive system detects the impact and immediately stops the moving panel. The drive system offers variable panel holding force to balance security with local life safety regulations. When the optical turnstile receives a fire/life safety input, the barriers open in the exit direction and remain open until reset. In the event of power loss, the barrier panels can be moved freely with very minimal force.

Key Features:

  • Strategically placed safety sensors prevent panel impact with persons or objects
  • Intelligent drive system and pinpoint control of moving panels
  • Free egress in emergencies or loss of power
  • Software adjustable panel holding force

Certifications

The ARGUS optical turnstile is one of the few products on the market that is independently tested by a Nationally Recognized Testing Laboratory (NRTL). The ARGUS is UL Listed, conforming to both UL and CSA standards. It is also CE marked.

CE-Logo
SA-Logo
Installation Images
Options And More

Additional information

The ARGUS has over a dozen available options, including:

  • Standard Deep Black and Corporate Satin finish packages available
  • Custom finish combinations are available
  • Custom etching on panels (polycarbonate only)
  • LED side panel illumination and ambient lighting
  • Multiple glass barrier heights
  • Automatic barrier opening on loss of power
  • Integrated barcode reader
  • Floor saver platform
  • Climb over detection

Elevator Destination Dispatch

Alvarado can integrate elevator dispatch displays into the ARGUS lid.

Modular Post and Panel Barriers

Custom infill sections and modular post and railing are available to fill in open areas around installed turnstiles and gates. Learn more about our modular post and panel barriers.

Visit our Optical Turnstiles Options Page for more information on available options for optical turnstiles.
