Clear arm full height turnstile CPST

CPST Clear Full Height Turnstile

The CPST clear full height turnstile has crystal clear rotating arms and side panels for a less industrial look. No other full height product comes close to the quality, looks and performance of the CPST clear full height turnstile.


Secured entry control applications

Employee and visitor access control   |   Time and attendance integration   |   One way exit control   |   Unattended entry points

Secured entry control for industrial facilities

Industrial Facilities

Secured entry control for corporate buildings

Corporate Security

Secured entry control for government buildings

Government Security

Secured entry control for public transportation

Public Transportation


Designed for looks and reliability

Superior construction

The CPST clear full height turnstile is built to the same exacting standards as all our full height turnstiles. Unlike competitor models, the integral sections of the CPST clear full height turnstile are complete assemblies, not bolted together components, creating a solid, secure and structurally sound product. Details matter, especially when manufacturing a clear full height turnstile designed to provide years of service.

Key Features:

  • Crystal clear rotating arms
  • Crystal clear side panels in aluminum frames
  • No exposed bolts or fasteners
  • Stainless steel top channel cover
  • High quality sealed and covered bearings
  • Splined connection between the rotating section and  top channel assembly provides a precision fit that minimizes play
  • Full-featured turnstile controller protects against electrical surges and is conformal coated to enhance weatherization protection
  • Suitable for indoor or covered outdoor environments
  • Dozens of options available

Added Benefits:

  • Better sight lines and premium appearance
  • Best in class security
  • Designed for long term continuous usage
  • One-to-one passage control deters tailgating
  • Great looking product
  • Easy to install and easy to maintain

icon_VR_arrow

Ready to meet your security needs

Unsurpassed facility entrance control

The CPST clear full height turnstile has crystal clear rotating arms and side panels that dramatically enhance the turnstile’s appearance. The clear full height turnstile is also richly appointed with standard features that are expensive options on competitor products.

The CPST provides bi-directional access control in conjunction with a facility access control system or any device that can provide a dry contact output (such as a push button). Card readers can be added to the clear full height turnstile and each direction can be independently configured as either fail-safe or fail-lock. In operation, when a valid credential is presented, the turnstile unlocks, allowing a single controlled rotation in the requested direction. Unauthorized entries, or attempts to tailgate on an authorized entry, are deterred.

The CPST clear full height turnstile has built in override controls that provide additional flexibility. Passage directions can be set for free passage, controlled passage or locked down.

Key Features:

  • Single or bi-directional control
  • Electric lock control
  • Independent fail-safe or fail-secure operation
  • Speed control to provide a controlled, safe rotation
  • Automatic self-centering prevents over or under travel of rotating section
  • Built-in override controls
  • Rugged turnstile controller integrates with any access control system
  • Low maintenance

Added Benefits:

  • Secure and safe
  • Intuitive for users and staff
  • Integrates easily with access control systems
  • Can be operated in unattended applications
  • Controlled rotation minimizes physical abuse, banging and wear on components
  • Simple to change between fail-safe and fail-lock operation

Simplified integration

Access Control and Visitor Management

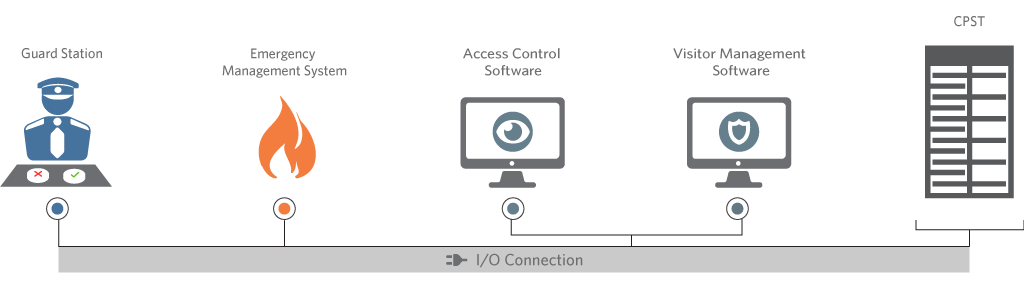

Integrating the CPST clear full height turnstile into your facility is quick and easy. The CPST integrates with virtually any access control or visitor management system and accommodates a wide array of credential readers. A dedicated fire system input is provided and passage outputs can be monitored to validate passage after activation, or to provide accurate people counting. The result is an elegant clear full height turnstile security solution that provides superior access control and visitor management.

Key Features:

  • Simplified integration to access control and visitor management systems
  • Flexible credential reader attachment options allows use of existing readers familiar to users
  • Dedicated fire input and various other available I/O
  • Override controls for operational flexibility
  • Easily change turnstile passage mode
Full height turnstile with access control and visitor management integration

Safety features you shouldn’t be without

Built-in Safety

CPST clear full height turnstiles provide secure and safe operation. Built in speed control controls the arm rotation speed by self-adjusting to the pushing force of the user. Even when a user pushes hard on the turnstile arms, the speed of the arm rotation is controlled. This increases safety and reduces the chance that a rapidly spinning rotating section catches a user’s heel. In addition to controlling the rotation speed, the clear full height turnstile’s speed control also greatly reduces the possibility that the rotating section will kickback toward the user at the conclusion of the rotation. After each passage, the rotating section smoothly returns to the home position and locks in place, ready for the next user. The unique cam design of the CPST also makes it mechanically impossible for a user to get locked inside the turnstile.

In secured applications the CPST is typically configured for fail-lock in the entrance direction and fail-safe in the exit direction. When power is removed from the turnstile this prevents people from entering but allows personnel to exit. Clear full height turnstiles configured for fail-lock in the exit direction can also provide free egress using local key override controls. Other ordering options are available and changing between fail-lock and fail-safe is easily accomplished in the field. A dedicated input for fire systems also provides free egress in the event of emergencies.

Key Features:

  • Speed control provides a safe, controlled rotation and smoothly self-centers rotating arms
  • Anti-entrapment design
  • Free egress in emergencies or loss of power

Certifications

The CPST full height security turnstile is independently tested and certified by UL, conforming to both UL and CSA standards. It is also CE marked.


ul-logo

sa-logo

logo_CE

Product downloads

Secured Entry Control Catalog

Download

CPST Datasheet

Download

CPST Descriptive Specifications

Download

CPST-6X Architectural Specifications

Download

CPST Revit File

Download

Visit our Resources page for drawings, manuals and application photos.


Additional information

The CPST clear full height turnstile has many available options, including:

  • User notification lights to provide status of presented credential (accepted/not accepted)
  • Turnstile open/closed status lights
  • Card reader attachment
  • Battery backup
  • Lock arm monitors (provides notification when turnstile is unlocked)

Full Height Barrier Sections

Full height barrier sections are available to fill in open areas around installed turnstiles and gates. Learn more in our full height barrier section.
